Resin Bound Surfaces
A resin bound surface is a mixture of aggregate stones and resin used to create a surface for footpaths, patios, Courtyards AND driveways.
It is a very attractive and durable surface solution. It is a permeable, flexible surfacing material which is resistant to cracking. It can also be called resin bound stone carpet.
We have completed resin bound work on both Residential & Commercial projects throughout the West of Ireland. Get in touch today.
RESIDENTIAL PROJECTS
COMMERCIAL PROJECTS
TESTIMONIAL
We used McKeogh Landscaping to apply a resin bound finish over our Beer Garden area. Â The surface to cover was uneven and was a mix of tar, paving and concrete and was about 110 Sq M. Â As a city centre site with difficult access, the job was planned extremely well and meticulously executed. Â Lots of edging, raising of drainage and manholes to new levels and the finish was excellent. It is a top class, permeable and durable finish with great slip rating and I would highly recommend it as a finished option for outdoor areas for any hospitality business. Â The workmanship is top class. Drop in for a look, a pint and a dance and see for yourself!
Johnny Duggan, Taylors Bar & Beer Garden, Galway City
The benefits of a Resin Bound driveway:
- Our permeable resin bound driveways combine stunning looks with a hard-wearing surface.
- A resin bound driveway is an eye-pleasing alternative to loose gravel, concrete, and brick.
- A domestic resin bound driveway needs little maintenance and, once installed, will reward you with many years of outstanding performance.
- We offer a wide range of colour and texture options, to either complement or contrast with adjacent surfaces. This huge selection allows for the creation of a truly unique resin driveway that will be the envy of your neighbours.
- Resin bound driveways deliver a beautifully smooth, accessible finish with no loose stone to migrate into other areas, making it foot-friendly and ideal for access to adjoining lawns.
- To keep it looking as good as new, a resin bound driveway only needs periodic sweeping and occasional power washing. The technology of the resin bound mix minimises weed growth and reduces puddles.
FAQ
What is a resin bound surface?

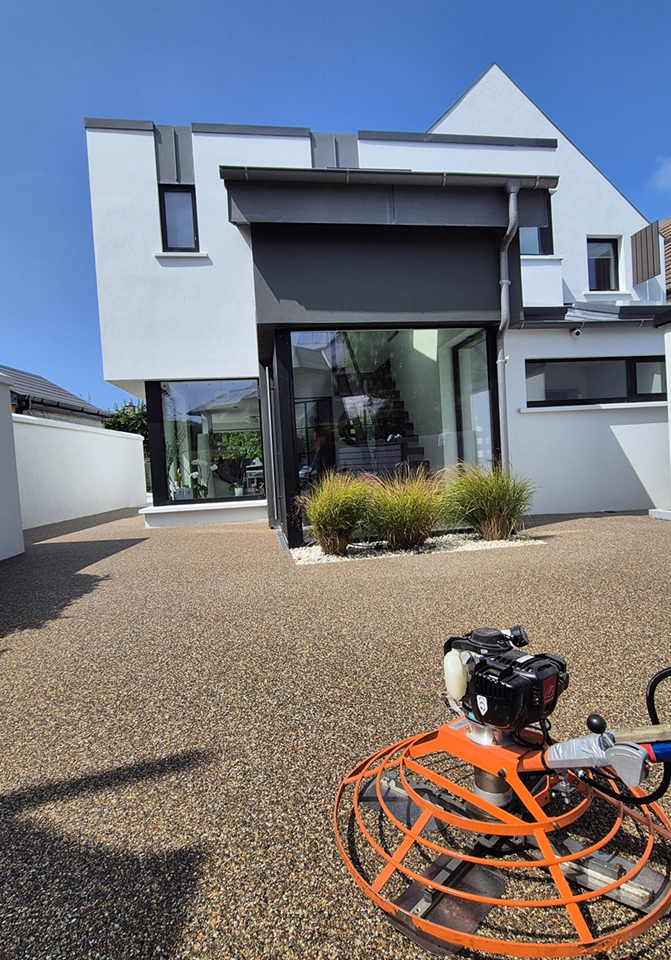

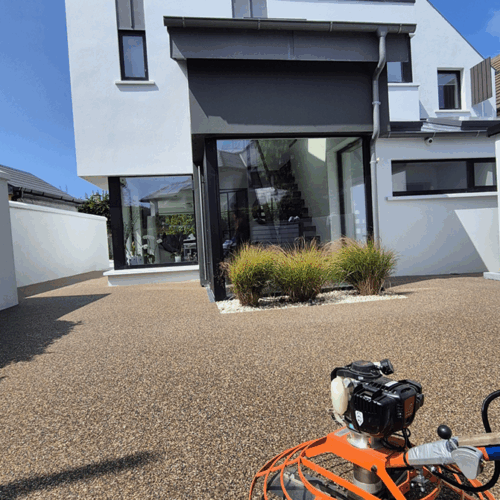

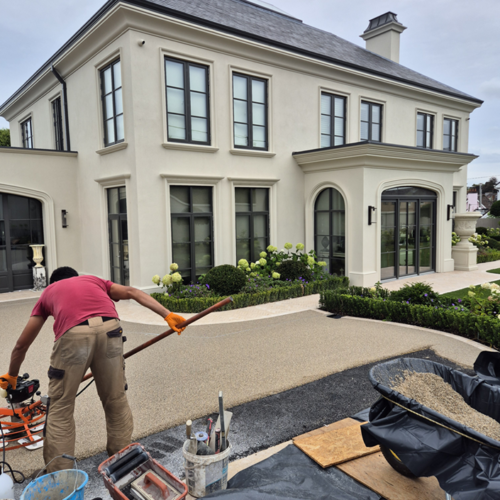

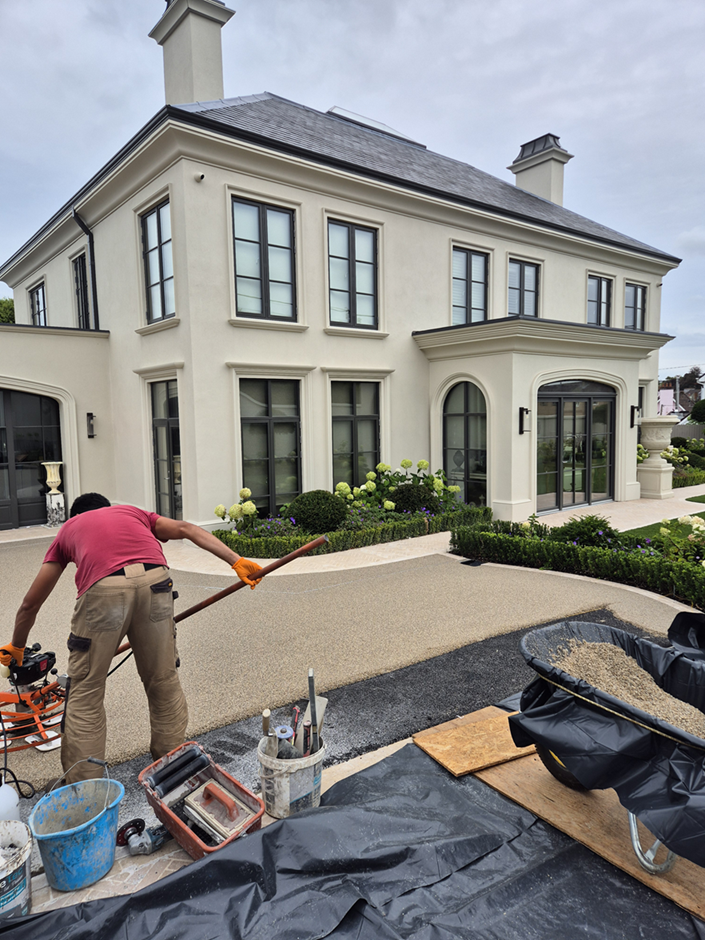

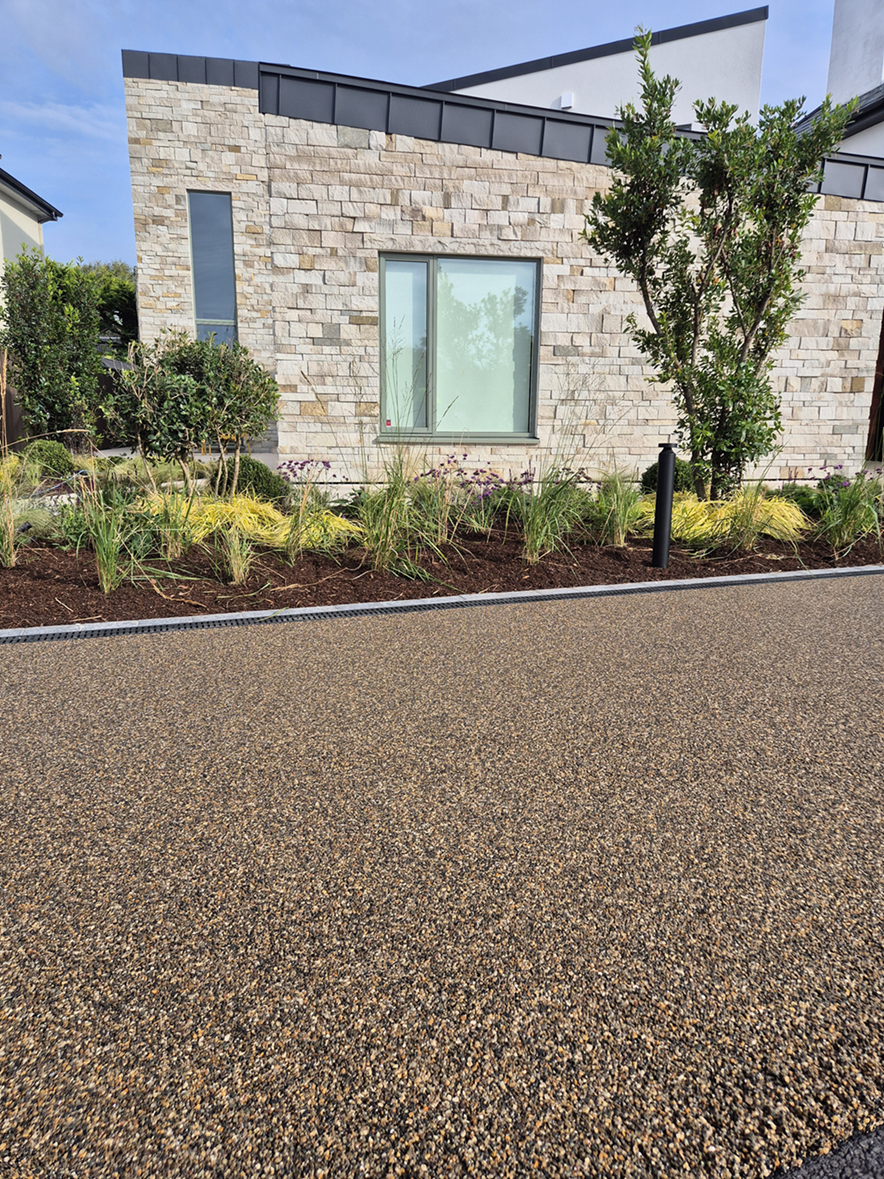

A resin bound surface is a durable, attractive and permeable paving system made by mixing natural stone aggregates with a specialist UV-stable polyurethane resin. The mixture is then laid onto a properly prepared, solid base and finished using hand trowels or a mechanical power float to create a smooth, seamless surface, typically between 15mm and 20mm thick.
Unlike loose gravel, the stones are securely bound together, creating a hard-wearing, low-maintenance surface available in a wide range of natural colours and finishes.
One of the main advantages of resin bound surfacing is its permeability. Rainwater can drain through the small gaps between the stones, helping to reduce surface water and puddling. When installed over a suitable open-textured tarmac base and free-draining sub-base, water can pass through the entire construction and drain naturally into the ground, where conditions permit.
Resin bound surfacing is suitable for driveways, car parks, patios, pathways, courtyards, beer gardens and other commercial spaces, offering an attractive alternative in both appearance and texture to traditional tarmac, concrete and paving.
A professionally installed resin bound surface typically has a lifespan of 15–20 years, depending on the quality of the installation, the condition of the sub-base, drainage, traffic levels and correct ongoing maintenance.
At McKeogh Landscapes, we provide a 15-year guarantee on our resin bound surfacing where we have installed the complete system, including the tarmac base and drainage.
Where resin bound surfacing is installed over an existing base that we have not constructed, we cannot offer the same guarantee, as we cannot be certain of the condition or long-term performance of the underlying sub-base structure.
A resin bound surface is only as durable as the sub-base structure beneath it. This is why we place such importance on proper ground preparation, drainage and base construction to ensure a long-lasting, high-quality finish.

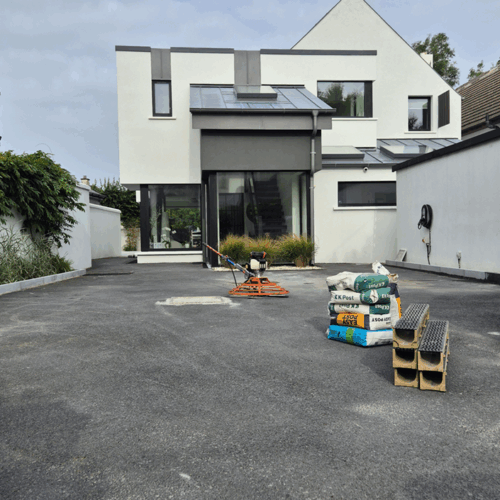

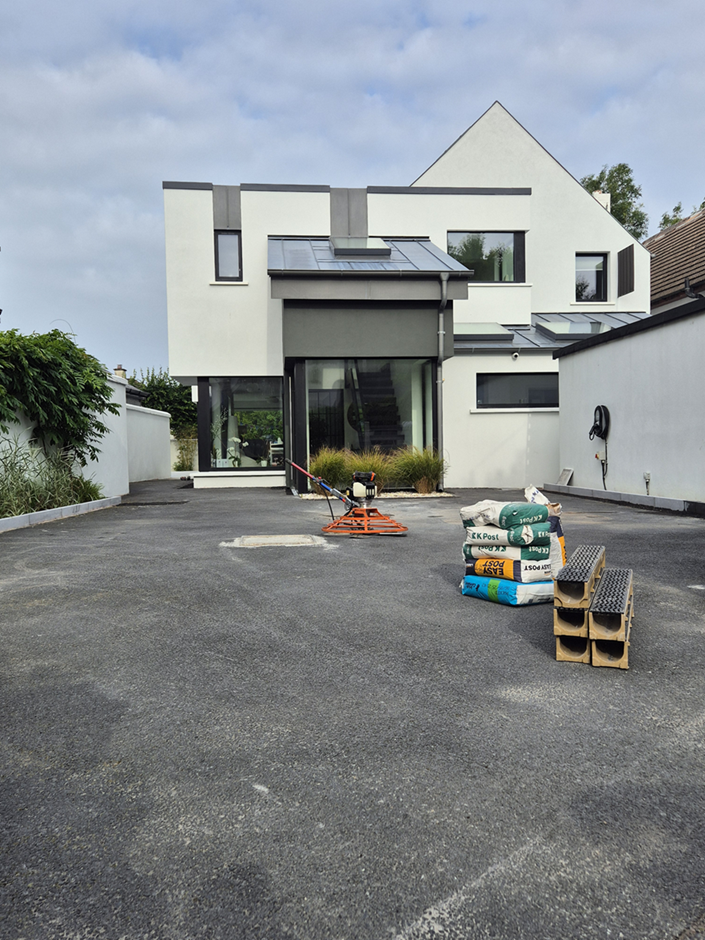

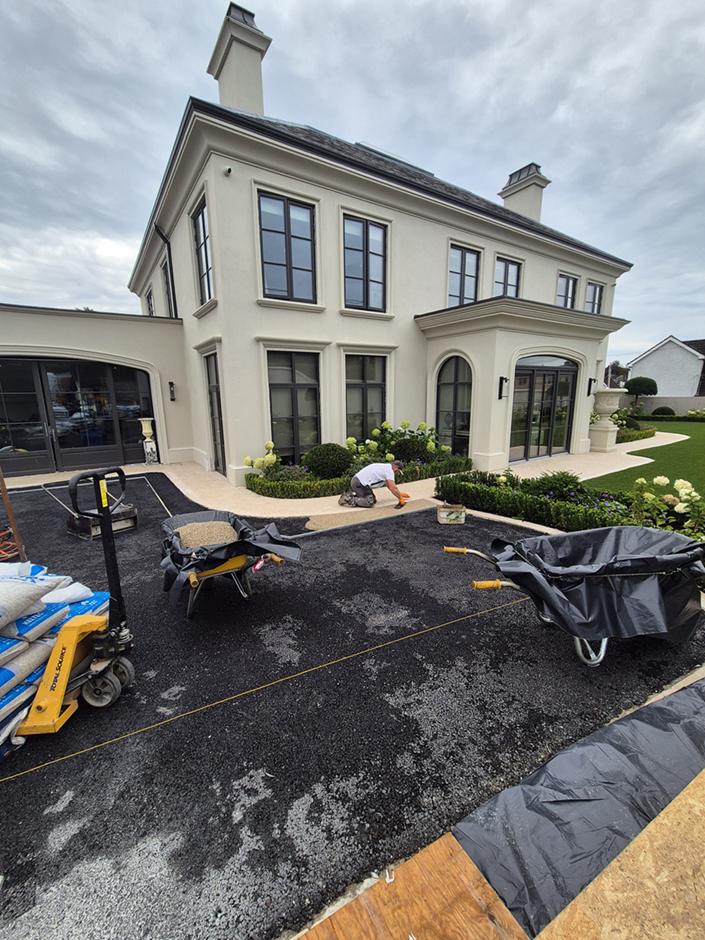

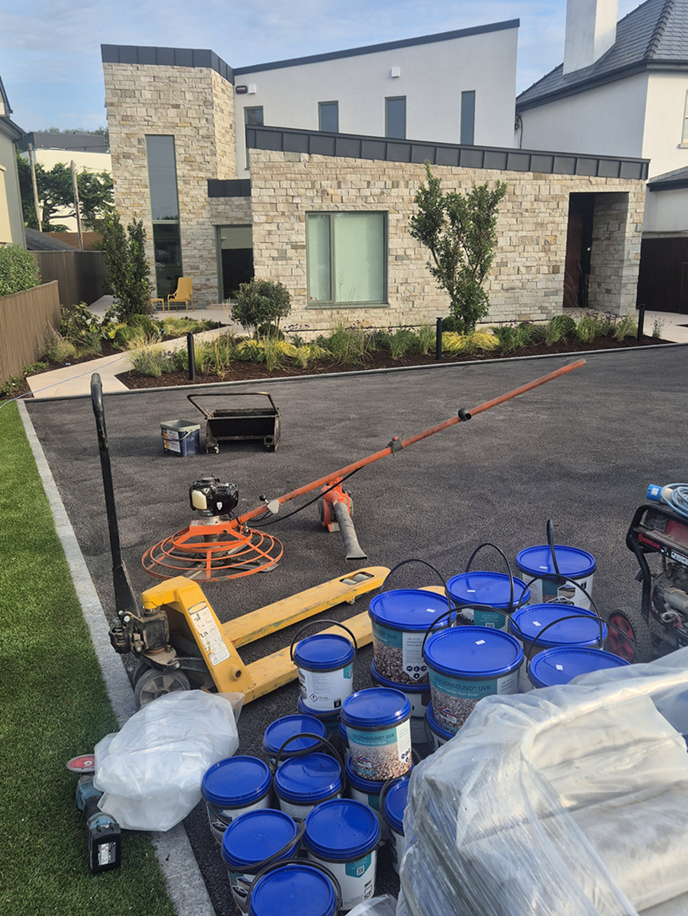

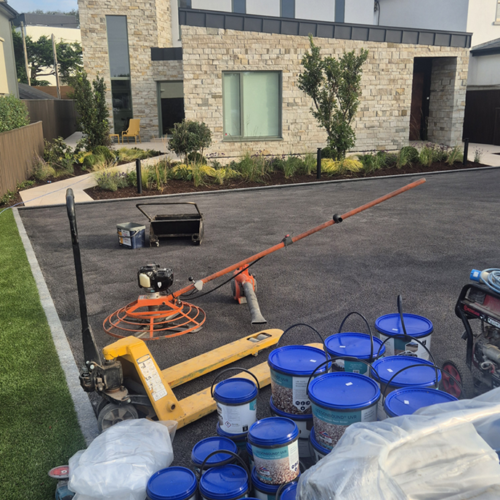

The ideal base for resin bound surfacing is open-textured tarmac, laid over a properly constructed, free-draining sub-base. This allows rainwater to pass through the resin, tarmac and underlying hardcore into the ground, where ground conditions permit. In our experience, this construction also allows the surface to dry out more quickly after rainfall, reducing the damp conditions that encourage moss and weed growth.
Existing Tarmac: Resin bound surfacing can be laid over existing tarmac, provided it is structurally sound and in good condition. However, tarmac typically has a lifespan of approximately 20–25 years, so laying resin over a driveway approaching the end of its useful life may not be cost-effective. The resin surface is only as reliable as the base beneath it.
Existing Concrete: Resin can be installed over suitable concrete, but careful consideration must be given to surface preparation, structural condition and drainage, as concrete generally prevents water from draining through to the ground. From our experience, expansion and contraction in concrete can also cause movement and cracking, potentially affecting the resin bound surface above. Structural reinforcement mesh helps alleviate this issue?
Existing Gravel: Neither loose nor compacted gravel is suitable as a direct base for resin bound surfacing. At approximately 15–20mm thick, the resin layer requires a solid, stable foundation. Movement or settlement beneath it can cause cracking and deterioration over time.
Existing Cobblelock Paving: We strongly advise against laying resin bound surfacing directly over cobblelock paving, as movement between individual blocks can lead to cracking or failure of the resin surface.
At McKeogh Landscapes, our preferred approach is to excavate and construct a properly engineered base where necessary. With over 200 completed resin bound projects, we assess each site individually to ensure the finished surface provides long-term durability, effective drainage and value for money.
The cost of a resin bound driveway varies depending on the size of the area, the condition of the existing base, the type of aggregate selected and the specific requirements of each project.
As a general guide, resin bound surfacing typically starts from approximately €70 per m² upwards, excluding VAT. This price covers the supply and installation of the resin and aggregate stone mixture only.
Additional works, including excavation, sub-base construction (tarmac or concrete), drainage, edging and kerbing, are priced separately.
The final cost will depend on several factors:
Area size: How many square metres require surfacing?
Traffic requirements: Will the surface be used by pedestrians, cars or heavier vehicles? This influences the required resin depth and base specification.
Existing surface: Is there a suitable existing tarmac base, or will excavation and a new base be required?
Drainage and edging: Are additional drainage systems, kerbing or edging required?
Aggregate selection: Different stone colours and blends may affect the overall price.
At McKeogh Landscapes, we assess each project individually and provide a detailed quotation based on the site’s conditions and intended use. Our priority is to recommend the most suitable construction method to ensure a durable, long-lasting resin bound surface.
All prices quoted above exclude VAT.
